LARGE FIELD-OF-VIEW
Design provides maximum situational awareness for faster acquisition & engagement.
RE-ENGINEERED
Redesigned for use with magnifiers & well-known issues from the original MRO® have been resolved.
NVG COMPATIBLE
The MRO® HD has 16 daylight & 4 NV settings to allow use with night vision devices.
RUGGED
Tested according to "The Science of Brilliant®". 30 m waterproof. Operational in -51 to 71 °C.
DESCRIPTION

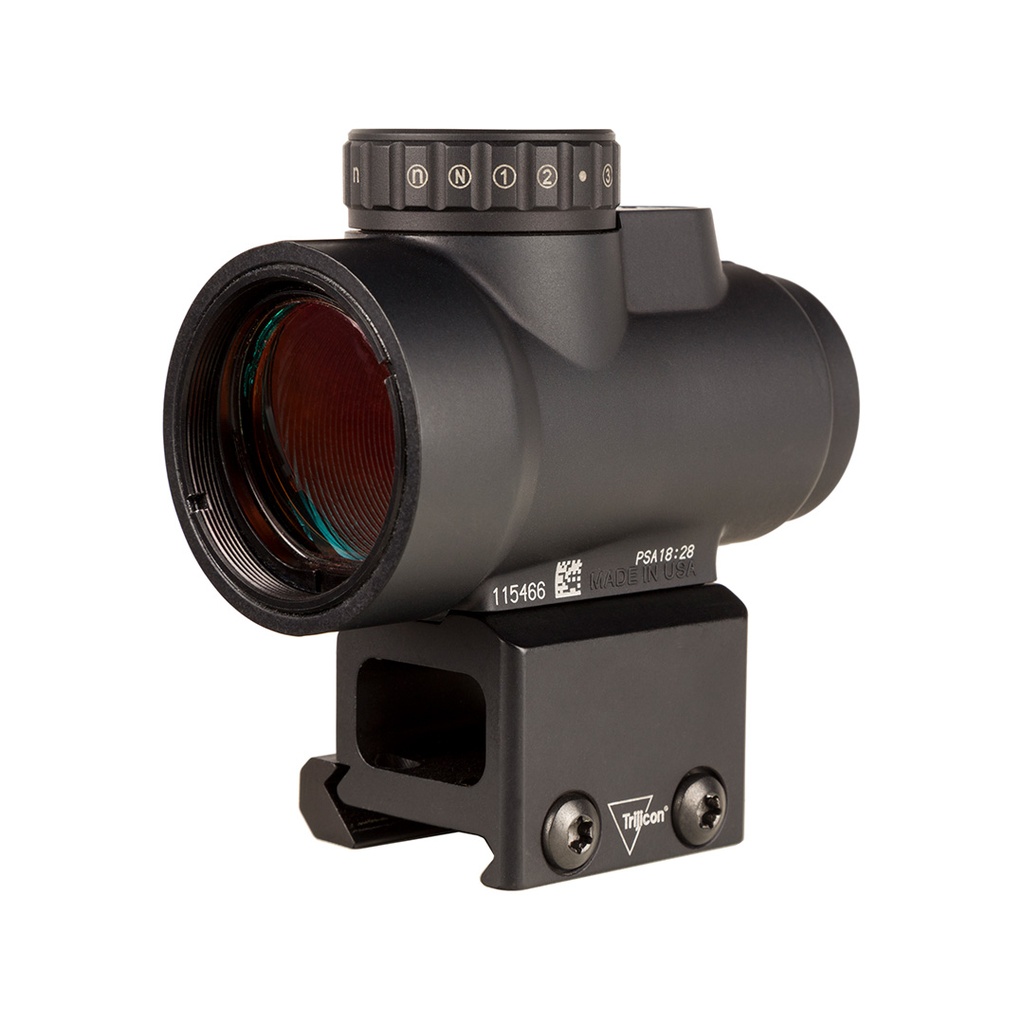

The Trijicon Miniature Rifle Optic (MRO®) is a reflex-style, sealed sight intended for use on rifles, carbines, and shotguns to provide fast target acquisition. It is designed to be used with both eyes open, providing the operator with maximum situational awareness.
The large aperture and tapered light path maximizes the viewing area in such a small optic, allowing for fast target engagement – especially from non-standard shooting positions. It also features ambidextrous brightness controls, sub-flush adjusters, advanced lens coatings, and a fully sealed, waterproof, hard anodized forged 7075-T6 housing, making the MRO® the ultimate mini reflex sight.
The MRO® HD is optimized for use with a magnifier, with a re-engineered objective lens to produce a refined 2.0 MOA center dot surrounded by a 68 MOA segmented circle reticle. The ambidextrous reticle and brightness control allows the user to choose between a full reticle or center dot only.
The Trijicon MRO® HD Magnifier is a 3 power reflex optic magnifier specifically designed to magnify the target and target seen through the MRO® HD red dot optic. By magnifying the target the shooter is able to use the crisp dot in the MRO® HD to quickly and accurately engage targets at extended distances. The MRO® HD Magnifier is short and compact which saves weight and rail space. The design features easy-to-set flush, toolless adjusters that make centering the reticle in the field of view easy. The adjustable diopter allows the user to tune the optical performance to their eyes.
The 3x magnifier also includes a multi position, military-grade flip-to-side quick release levered mount which makes mounting and unmounting the optic from the host platform quick and easy. This mount is also designed to flip into place over the top of back up iron sights commonly used on modern sporting rifles. Each magnifier includes a riser plate and additional fasteners to allow the optic to align with either 1/3rd or Full Co-Witness MRO® HD mounts.
PRODUCT FEATURES
LARGE FIELD-OF-VIEW
The MRO® HD features a larger viewing compared to other red-dot sights. This extra area allows for faster acquisition and engagement with a reduced “tube effect.” The adjustment dial on top of the optic also provides more situational awareness compared to red-dot sights where the dial is mounted on the side.
OPTIMIZED FOR MAGNIFIERS
The Trijicon® MRO® HD is re-engineered to operate with a magnifier. It produces a crisp 2.0 MOA center dot with a 68 MOA segmented circle reticle whereas using the circle is optional. On top, well-known issues from the original MRO® have been resolved with the MRO® HD.
CONSTRUCTION
- Adheres to "The Science of Brilliant®"
- Tested from -51 to 71 °C (-28 to 60°C for magnifier)
- Zero tested with 1 to 5K consecutive rounds
- Drop tested
- Shock & Vibration tested
- Immersion tested
- 30 m submersible
- Weight: 182 g (159 g for magnifier)
- Battery life: 2.5 years for dot only, 75 days for complex reticle (at setting 5 of 8)
DESIGN & MOUNTING
- Cap remains attached to the optic during battery changes
- Compact design despite its large lens
- Lower 1/3 cowitness torque screw mount
- 3x Magnifier features a quick-release Flip-to-Side Mount
ADJUSTMENTS & SETTINGS
- Easy adjustable ambidextrous brightness knob
- Sub-flush adjusters eliminate lost caps, snag hazards and ensures against inadvertent adjustment or loss of zero
- 16 brightness settings, including 4 night vision-compatible settings
OPTICAL SPECS
- Red-dot:
- Red 3 MOA dot with optional 68 MOA reticle
- No magnification
- 25 mm aperture
- Unlimited eye relief
- 3x magnifier:
- 3x magnifiction
- 66 mm eye relief
- 7.2° Field-of-view
MORE DETAILS
- Made of 7075, T-6 forged aluminum with matte finish
- Measurement red-dot: 77,66 x 43,18 x 50,8 mm
- Measurement 3x magnifier: 158,75 x 43,18 x 50,8 mm
- Uses 1x CR2032, 3V Lithium battery
- Made in the USA
IN THE BOX
- 1x MRO® HD
- 1x Lower 1/3 Co-witness AC32069
- 1x Trijicon® Logo Sticker
- 1x Lens Cloth
- 1x Manual
- 1x Warranty Card
- With 3x magnifier:
- 1x Magnifier (3x) & Quick Release Flip-to-Side Mount
- 1x Magnifier manual
- 1x Mounting Tools
