AFFORDABLE BINOS
RayXagon was founded to make night vision care-free & more affordable to everyone.
MODERN FEATURES
Provided with all specs & features required for a modular & modern setup.
ULTRALIGHT
The UNVM is amongst the lightest monocular with a full weight of maximum 285 g.
RUGGED
IP66 rated to be dust-tight & waterproof against water jets, and made to withstand demanding conditions.
DESCRIPTION

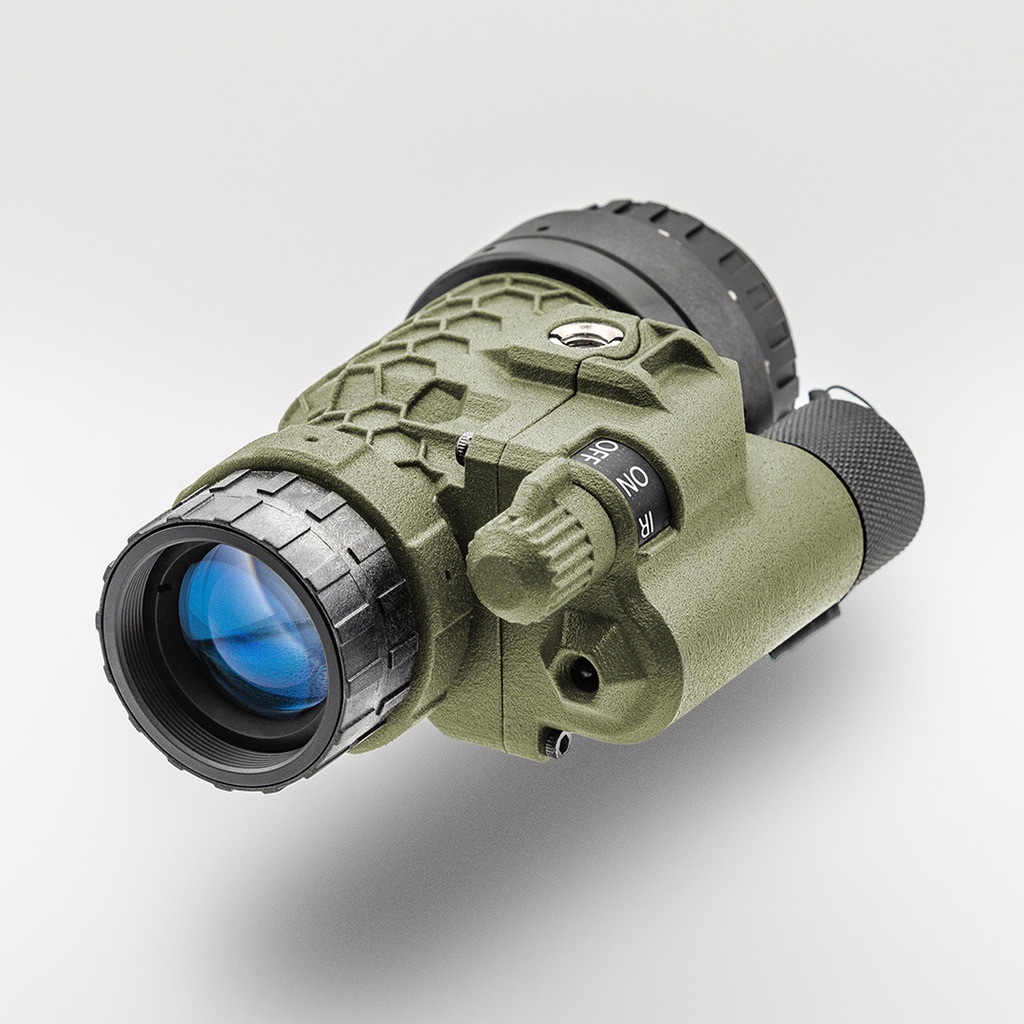

The RayXagon Ultralight Night Vision Monocular (UNVM) is an extremely lightweight and compact night vision monocular that can be used on a helmet, on a weapon or by hand.
Offered with an extensive range of image intensifier tubes. These tubes are available in white or green phosphor. RayXagon works with Photonis, Elbit or North Night Vision Technology (NNVT) brand tubes.
Available in a STARTER, PRO & EXPERT version to allow night vision capabilities for any type of budget.
Optionally, a Dovetail Mount from Cadex Defence with a J-Arm from RayXagon can be provided as a helmet mounting solution. The universal Low Profile Flip-up Dovetail Mount is known as the best and most reliable mounting solution on the market (that is also ITAR-free). The J-Arm from RayXagon offers a solid connection between the UNVM and the Dovetail Mount.
PRODUCT FEATURES
BUILT-IN IR ILLUMINATOR
The UNVM features a built-in infrared illuminator that provides a wavelength of 850nm. Making it compatible with most image intensifier tubes which ensures perfect vision in all situations.
MODULAR POWER
Running for 40 hours on a single AA battery, it can also run on rechargeable 14500 batteries. Additionally, the UNVB has a connector for an external power supply. This allows a significant increase in autonomy for long-duration use.
ERGONOMIC SWITCH
The device is equipped with a robust and ergonomic 3-position switch (OFF, ON, IR) for easy use, even with gloves.
PVS-14 INTERFACE
The UNVM features a standard 1/4″ mounting interface (PVS-14 type), which allows perfect compatibility with various J-Arm type mounting solutions on the market. This to mount it on a helmet, firearm or even a tripod.
NON-SLIP COATING
It's registered honeycomb patterned outer surface ensures perfect grip, even with gloves or wet hands.
PERFORMANCE
- Field of view: 40°
- Magnification: 1x
- Focus range: 20 cm to infinity
- Diopter adjustment: -6 to +3
- Operating temperature: -35 to 50°C
- IP66 rated
- "IR-ON" & "LOW BATTERY" indicator
- 285 g (with batteries)
- Automatic brightness gain
- 1/4inch thread compatible with J-Arm
- Cerakote NiR paint treated with low IR signature
OPTIONAL CADEX DEFENCE DOVETAIL MOUNT W/ RAYXAGON J-ARM
- Ergonomic “one touch” height adjustment
- Low profile design follows helmet contour when folded
- 6 positions adjustable mounting plate fits numerous facial profiles & helmet mounting systems
- Locked in a stowed position
- Force overcome in down/deployed position
- If the NVG is bumped or impacted, the mount will fold & lock in an upright position protecting the NVG & user
VERSION DIFFERENCES
STARTER
- Generation 2+ tubes, 1400 - 1600 FOM
- Commercial range optics
PRO
- Generation 2+ tubes, 1600 - 1800 FOM
- Autogating
- Milspec Optics (Carson or Qioptic)
EXPERT
- PHOTONIS ECHO tubes, Generation 2+, 1800 - 1990 FOM
- Autogating
- Milspec Optics (Carson or Qioptic)
WHY GO FOR A RAYXAGON NVG?
- RayXagon devices are made to adhere fully to "dual-use" civilian ownership whilst offering the highest possible durability and performance standards, allowed within this scope of European laws.
- With a NVG from RayXagon there's no risk of authorities seizing your device and sending it back to the supplier, interrupting your activities.
- The tubes offered are only of the Generation 2+ type because:
- These DO NOT require a license, implying you can freely travel across European countries with your device.
- The performance difference between Gen2+ and Gen3 tubes are rather small, this while Gen3 tubes are 2x the price.
- They provide a 2.5x greater light amplification than Gen2 tubes with improved resolution and a higher SNR, giving a brighter picture with less noise and an overall better image quality.
- RayXagon NVG's are the most budget-friendly high-quality devices in Europe.
MORE DETAILS
- Made in France
- *NOTE: A dovetail style NVG mount with a J-arm are required in order to use the UNVM with a helmet.
IN THE BOX
- 1x UNVM
- 1x Velvet protection bag
- 1x Sticker & patch
- 1x Manual
