CENTRAL HUB
SCU-300 forms the central base for the TMAS system, allowing tremendous comm modularity & use.
COMPATIBILITY
Allows use with single-channel radios, dual-channel radios & ICS connections in vehicles.
REMOTE CONTROL
Includes the RCU-300 which provides remote control without removing one's hands from your weapon.
RUGGED
Designed for military applications. IP68 waterproof & dust-proof. Operational in -20 to 55°C.
DESCRIPTION
The next generation of tactical communication & hearing protection is here!
Based around a new system called TMAS (Tactical Modular Audio System), this generation features clear, reliable wireless communication that removes the cable(s) between the headset and Push-To-Talk (PTT), helping to increase overall mobility. The system offers flexibility and scalability to address the needs of the modern soldier, with the ability to manage legacy and future radio systems.

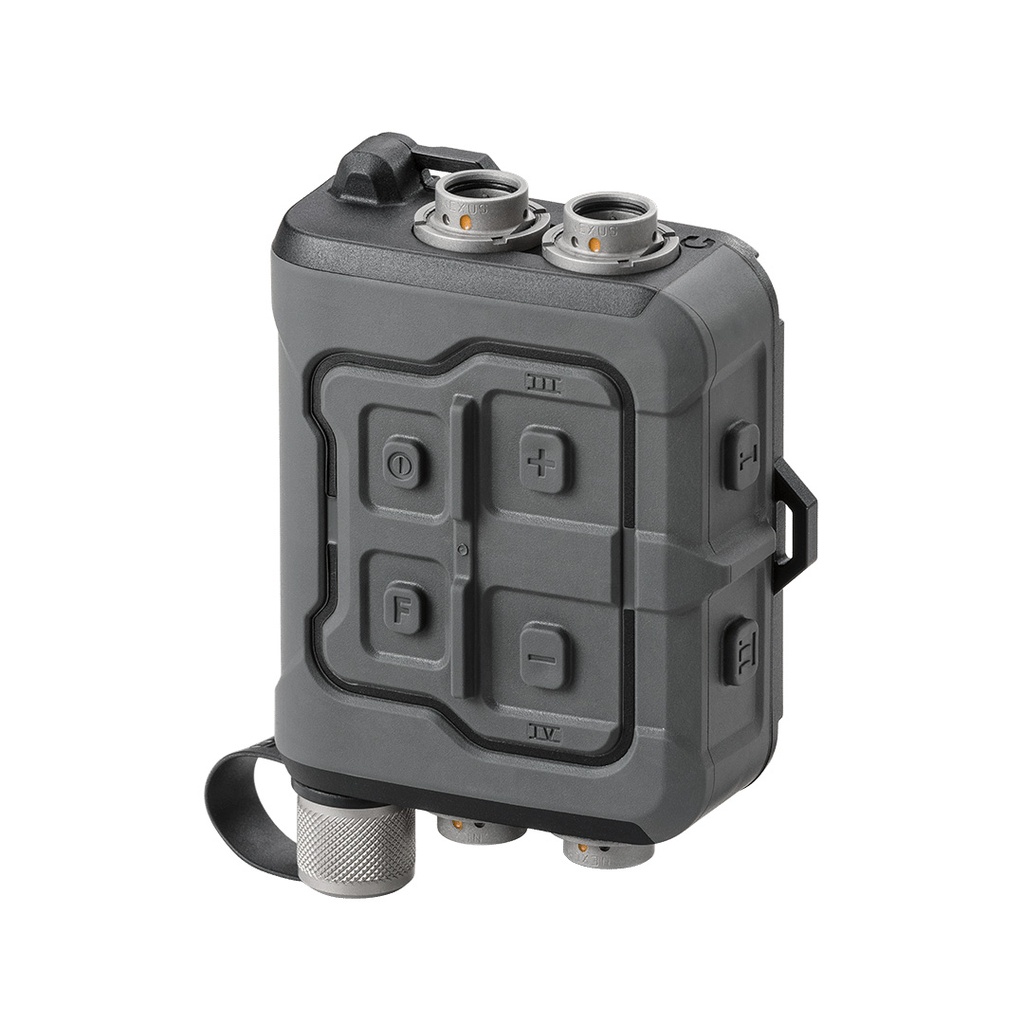

The PELTOR™ ComTac™ SCU-300 (System Control Unit) forms the central hub for the TMAS system, allowing incredible communication modularity between the ComTac VII, ComTac VIII, TEP-300 and radio devices.
Included is also the RCU-300 (Remote Control Unit), which allows seamless remote control of the SCU-300 while mounted on a rifle (or anywhere else). It can be used as a remote PTT or adjust the volume without the need of removing one's hands from the weapon system.
PRODUCT FEATURES SCU-300
CONNECTION OPTIONS
The SCU-300 is single, dual and multi-comms configurable with up to 3 physical communication connections and up to 6 two-way audio streams.
RADIO COMPATIBILITY
The SCU-300 is compatible with both single-channel radios and dual-channel radios as well as ICS (InterCom Socket) connections in vehicles.
BLUETOOTH®
Grey version of the SCU-300 allows for Bluetooth® connection and remote use with devices such as smartphones. The coyote version DOESN'T have Bluetooth®!
AUDIO MANAGEMENT
The SCU-300 can handle multiple radios, with multiple channels. In such scenarios, the user is able to select 1 of 3 sound profiles:
- Mix: Radio communication(s) are heard equally in both left & right ear
- Split: Radio communications will be split between the left and right ear
- Surround: Radio communications will be perceived as it comes from different directions
SPECIAL FEATURES
- Install connection once & ready-to-go
- Single button shutdown
- Easy to identify buttons with a positive feedback
- Allows for right-and left-handed operation with gloves
- Design prevents accidental button activation
CONSTRUCTION
- IP68 waterproof (up to 3 m depth for 30 min) & dust-proof
- Operational in temperatures from -20 to 55°C
MOLLE/PALS CLIP
The SCU is designed to be integrated into the operator's mission equipment. Its clip is MOLLE/PALS compatible, allowing its mounting on the operator's shoulder, vest or belt.
PRODUCT FEATURES RCU-300
REMOTE CONTROL UNIT
The RCU-300 provides a new way to communicate & adjust your comm system without the need to take your hands off your rifle.
SPECIAL FEATURES
- Install connection once & ready-to-go
- Easy to identify buttons with a positive feedback
- Allows for right-and left-handed operation with gloves
- Design prevents accidental button activation
CONSTRUCTION
- IP68 waterproof (up to 3 m depth for 30 min) & dust-proof
- Operational in temperatures from -20 to 55°C
MOUNTING & PAIRING
The RCU-300 is designed to be mountable on a 1913 Picatinny rail, but can also be placed elsewhere (e.g. steering wheel). Two RCU's can be paired with one SCU at the same time.
STANDARDS & APPROVAL
- MIL-STD-810G
- EMC-MIL-STD-461G
- 3M Svenska AB declares that the product is in compliance with Directive 2014/53/EU and other appropriate directives to fulfill the requirements for the CE marking.
MORE DETAILS
- Dimensions SCU-300: 11 x 7,5 x 3,6 cm
- Dimensions RCU-300: 6,1 x 4,1 x 2,4 cm
- Weight SCU-300: 218 g
- Weight RCU-300: 51 g
- Runtime SCU-300: ~ 30h
- Runtime RCU-300: ~ 1600h
- Battery Type SCU-300: 2x AAA
- Made in Sweden
- *NOTE: Connectivity to radio systems requires SCU adapter cables
POSSIBLE TMAS CONFIGURATIONS
EXAMPLES OF HEADSET CONFIGURATIONS
EXAMPLES OF RADIO CONFIGURATIONS
IN THE BOX
- 1x ComTac SCU-300 with clip
- 1x ComTac RCU-300
- 4x SCU-300 waterproof socket cap
- 2x AAA battery
- 2x user manual
